Perfect stubble cultivation with a perfect distribution of straw
Ideal for seedbed preparation
More Info
An effective fine cultivator for mechanical tillage
For soil loosening and aeration in the spring
5 - 12 m working width
Power demand starting at 115 kW / 160 HP (XL 3-point)
4-bar design for a long stay of soil in the cultivator
FlexGrip tines with mechanical overload protection and a release force of 100 kg
5 cm narrow coulters for intensively mixing, shallow cultivation
18 cm wide wing coulters for a shallow full-surface tillage

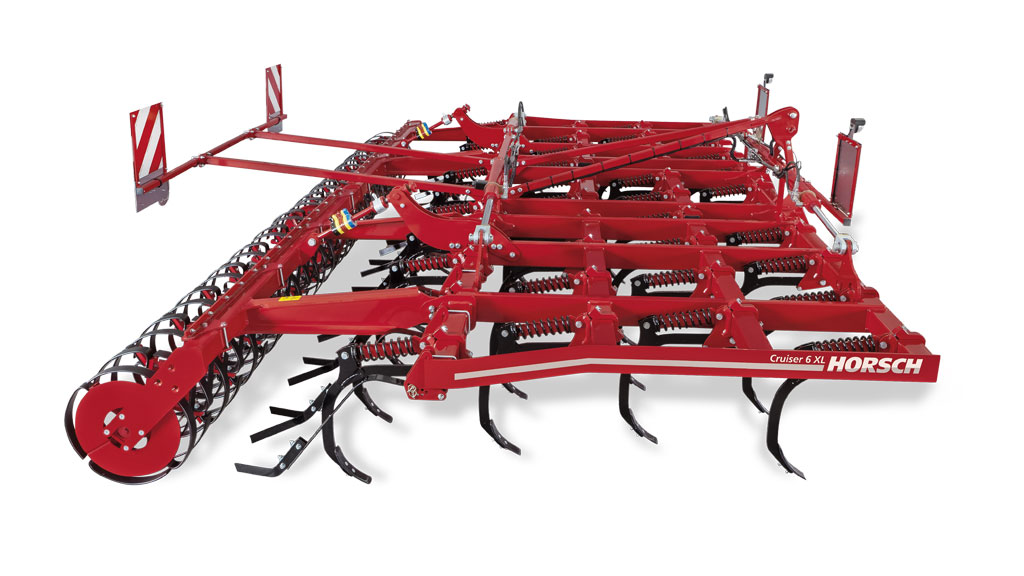

Cruiser 5/6 XL
The Cruiser XL is a 6-bar specialist for shallow and medium-deep tillage.
More Info
Due to the clearance at the tine shaft of 700 mm even large quantities of organic material are no problem.
The working depth is adjusted via the support wheels at the front and the packer.
The available working widths range from 5 to 6 meter.
It is equipped with the HORSCH spring tine which rests unobtrusively in the frame and has a release force of 150 kg.
The cultivator can be equipped with all four different cultivating point version and thus can be used in all seasons.
The chassis of the Cruiser 5 / 6 XL is located behind the tine section, in front of the leveling tools. The chassis with its large wheels is used for road transport as well as for turning on the headlands.
The sophisticated design characteristics of the chassis guarantees high ground clearance when lifted as well as a save swiveling of the tyres out of the working range when lowered.
The position of the chassis has been chosen to guarantee optimum maneuverability in the field and high driving comfort on the road.
To be able to make optimum use of the tractive output, the Cruiser XL is equipped with a fully integrated tractive power amplifier that transfers weight to the rear axle of the tractor with 1 200 kg while working.
It is activated by switching the control device for lifting and lowering to a depressurised condition, without any additional control devices or cylinders.
Cruiser 10/12 XL
The specialist for shallow and medium tillage
More Info
Intensive mixing of harvest residues due to 6-bar frame design
All-over cutting during stubble cultivation
Excellent levelling of the field
Production of the fine soil in the seedbed
10 m and 12 m working width
Excellent stability for highest tractor powers
Working depth is adjusted via the robust, well-proven AluClips
Working depth up to 15 cm
Double-RollPack packer for intensive consolidation
Disc levelling with maintenance-free bearing in front of the packer
Well-proven frame concept with revolver chassis
ORSCH spring tines: Combines consistent working depth and the ability to move to the side and upwards to avoid obstacles.
