Leeb PT Crop Protection

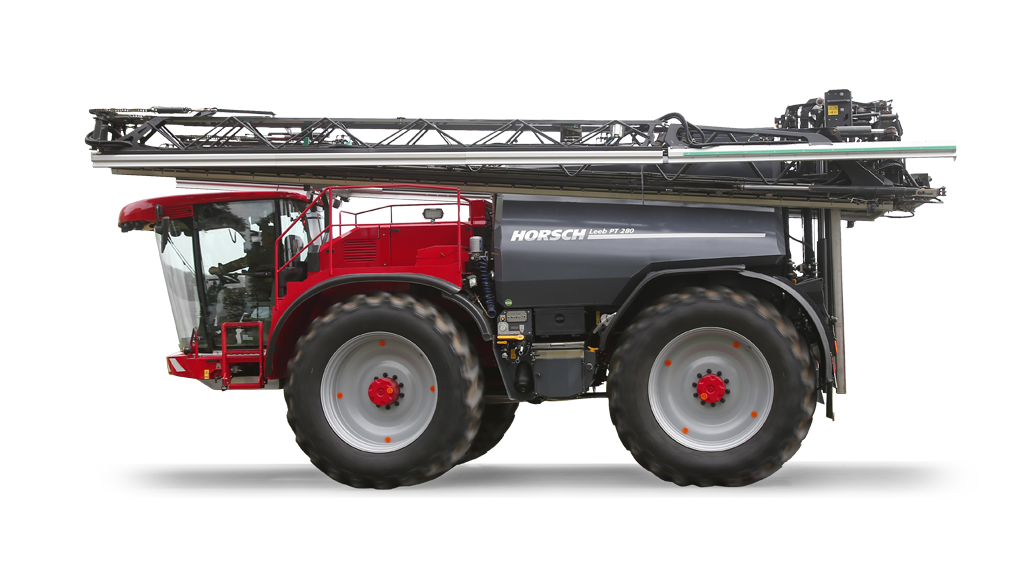

Leeb PT280
  • Self-propelled sprayer with large area coverage
  • Up to 36 m working width
  • Pneumatic nozzle switching
  • Stainless steel tank for long life and easy cleaning without leaving any residues
  • Cleaning system on the displacement principle for less water consumption and faster cleaning
  • Rotary pump with low wear and long life performance
  • Steel spray boom with positive-mode connections
  • 8,000 l capacity
  • 270 hp engine power
  • 0.8 l / ha of diesel consumption
  • Filling capacity – 1,000 l / min
More Info
  • Automatic headland control
  • Minimized spray line lengths
  • Distance-Control, Boom-Control fnd Boom-Control plus for optimal adaptation to any site contour
  • Spray boom with pneumatic cushioning
  • Mechanical axis drive for better traction on a hilly area
  • NIGHT-LIGHT at night for optimal spraying control
  • 8,000 liters can be refuelled in 8 minutes.

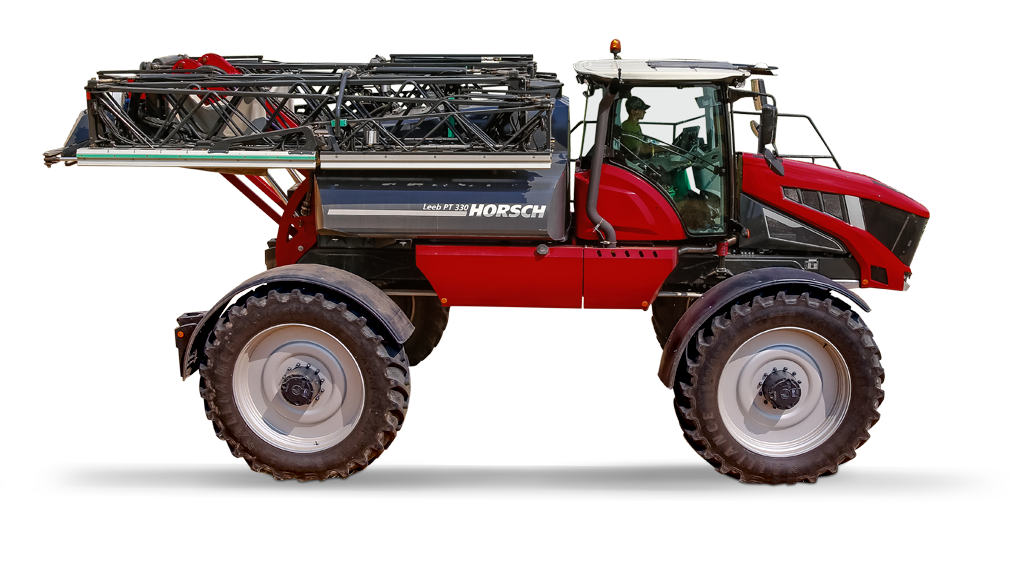

Leeb PT330*/350
  • 6-cylinder motor with 354 HP (PT 350) and with water cooling
  • electro-hydraulic four-wheel steering
  • Stepless hydrostatic traction drive with automatic load depending (Horsch) motor regulation, desoigned for an operational speed up to 30 km/h in the field and 60km/h on street
  • Hydropneumatic individual wheel suspension
  • Track width steplessly variable from 2,25 to 3 m
  • High ground clearance steplessly variable from 1,4 to 1,6 m
  • Height adjustment allows driving also in high crops, e. g. maize or sunflowers
  • Tank capacity 5 000 liters for the spray liquid container and 500 liters clear water tank
  • Spraying pump max. 1000 l/min
  • 330: TIER 3a only available in Low Regulated Markets (LRC), e. g. Russia.
More Info
  • Continuous inside cleaning by the CCS System (Continuous Cleaning System)
  • Boom widths available from 30 m up to 36 m (9-section boom)
  • Extremely stable boom position, even when driving in very uneven tracks and with high working speed
  • Tank Capacity 5,000l (plus 500l clear water)
  • Motor 6-cylinder, 354hp
