Rollvan Livestock Trailers

Manufacturers since 1946, ROLLAND's agricultural machines are in constant evolution and innovation to meet the requirements of the modern farmer. Dealing with several aspects of the farming operations, Rolland has perfected their craft and offers premium agricultural machines for all sizes of farming operations. The Rollvan range of livestock trailers has been designed with this expertise in the industry, to create a comfortable, efficient, and robust range of livestock transport trailers.

With 6 products to select from and several options available to be attached, Rolland Rollvans cover areas from 4.7m to 8.5m, with animal spacing from 7/8 animals to - 17/18 animals at the largest sizes

Understanding the importance that comforts in all aspects of life have for cattle's quality, Rolland Rollvans come standard with Anti-Slip flooring to reduce the potential of harm to the animal. Similarly, the specifically designed rubber flooring has been added to reduce the noise created by the solid chassis. This creates a more comfortable transport experience for cattle and the driver. The Auto-Lock fitted to the rear doors as standard provides a self-closing door system which significantly reduces any potential errors to occur with door operation.

The modern and safe design of the hydraulic lowering system allows for complete adjustment over the height of the Rollvan trailers. This allows you to lower the trailer to suit the external environment, creating a seamless transition between trailer and ground for cattle. This is also aided by the quick-release rear doors, which eliminate the potential for any awkward or cumbersome process to open the doors, allowing cattle an easy exit from the trailer. A full door clearance of 2.30m provides significant room for the entry and exit of the animals.

Each Rollvan livestock trailer has been fitted with full LED light systems with an optional 3rd upper brake light, to increase visibility and safety during transport. Extendable tubular gates from 2.5-4m mean loading cattle back off the trailer can be done securely. Available to be adaptable to any environment, a tarpaulin can be fitted over the trailer to protect the cattle from the elements.

Rollvan Livestock Trailers

RV47 15ft
  • Length: 4700 mm
  • Width: 2300 mm
  • Side height:1500 mm
  • Carrying capacity: 4300 kg
  • Type of axle :1 axle hydraulic lowering system
  • Axle size: 1 x 70 (brakes 300x60) mm
  • Standard wheels: 13.0/18 16p
  • Unladen weight: 1920 kg
  • Hydraulic jack: Skid
  • Brakes: Hydraulic
RV52 17ft
  • Length: 5200 mm
  • Width: 2300 mm
  • Side height:1500 mm
  • Carrying capacity: 5500 kg
  • Type of axle :1 axle hydraulic lowering system
  • Axle size: 1 x 70 (brakes 300x60) mm
  • Standard wheels: 13.0/18 16p
  • Unladen weight: 2020 kg
  • Hydraulic jack: Skid
  • Brakes: Hydraulic
RV59 19ft
  • Length: 5900 mm
  • Width: 2300 mm
  • Side height:1500 mm
  • Carrying capacity: 6100 kg
  • Type of axle :1 axle hydraulic lowering system
  • Axle size: 1 x 70 (brakes 300x60) mm
  • Standard wheels: 13 65 17
  • Unladen weight: 2500 kg
  • Hydraulic jack: Skid
  • Brakes: Hydraulic

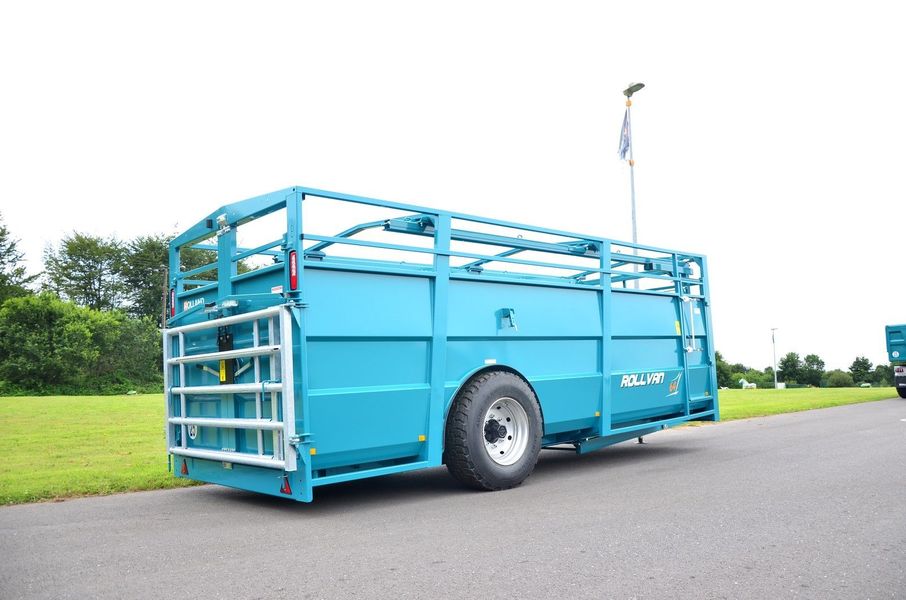

RV64 21ft
  • Length: 6400 mm
  • Width: 2300 mm
  • Side height:1500 mm
  • Carrying capacity: 8000 kg
  • Type of axle :1 axle hydraulic lowering system
  • Axle size: 1 x 90 (brakes 400x80) mm
  • Standard wheels: 15 22.5
  • Unladen weight: 3000 kg
  • Hydraulic jack: Skid
  • Brakes: Hydraulic
RV742 24ft
  • Length: 7400 mm
  • Width: 2300 mm
  • Side height:1500 mm
  • Carrying capacity: 9000 kg
  • Type of axle :2 axle hydraulic lowering system
  • Axle size: 2 x 70 (brakes 300x60) mm
  • Standard wheels: 13.0/18 16p
  • Unladen weight: 3620 kg
  • Hydraulic jack: Skid
  • Brakes: Hydraulic
RV852 28ft
  • Length: 8500 mm
  • Width: 2300 mm
  • Side height:1500 mm
  • Carrying capacity: 12000 kg
  • Type of axle: 2 axle hydraulic lowering system
  • Axle size: 2 x 90 (brakes 400x80) mm
  • Standard wheels: 15 22.5
  • Unladen weight: 4460 kg
  • Hydraulic jack: Skid
  • Brakes: Hydraulic
