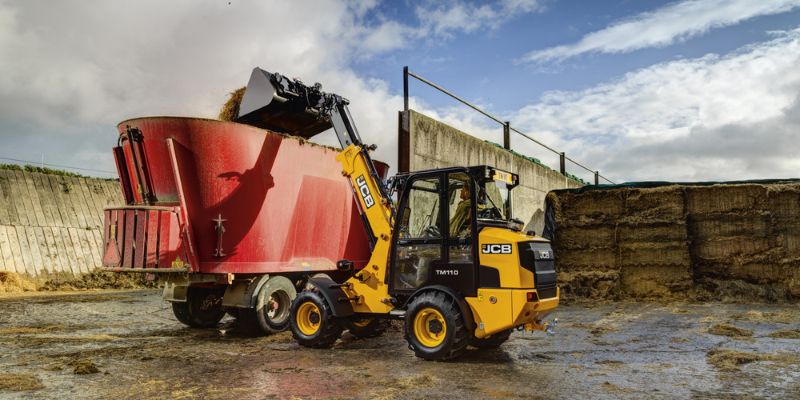

What is the JCB TM110 Agri?

The JCB TM110 Agri is a compact telescopic wheel loader designed for farms with tight buildings and yards. Some key specifications:

  • Lifting capacity of 1,100kg to a height of 3.5m

  • Weighs 3,295kg

  • Powered by a 36kW (48hp) Stage V engine

JCB built it as the smallest model in its telescopic wheel loader range, aimed at livestock and mixed farms that need lifting power but cannot fit a full-size telehandler through a shed door.

How much can the JCB TM110 lift?

The JCB TM110 has:

  • A lift capacity of 1,100kg

  • A maximum lift height of 3.5m

  • A forward reach of 2,240mm.

  • Straight tipping load on forks (500mm load centre) is 1,935kg

  • Full turn tipping load is 1,435kg.

  • Breakout force is 24.6kN.

These figures put it ahead of most skid steers and compact loaders of a similar size, while staying well below the weight and footprint of a standard telehandler.

What engine and transmission does the JCB TM110 use?

The TM110 runs a 1.663 litre Perkins 403J-E17T engine, turbocharged, producing 36kW (48hp) at 2,700rpm and 167Nm of torque at 2,200rpm.

It meets Stage V emissions standards using a DPF particulate filter and does not require AdBlue, which removes a service item other machines in this class carry.

Drive is through a two-speed hydrostatic transmission (ZF/Bosch-Rexroth), giving a top speed of 30kph and a low range of 8kph or 12kph depending on transmission spec, for fine control indoors.

How manoeuvrable is the JCB TM110 in tight spaces?

The TM110 is built around heavy-duty articulated steering, giving it a turning radius of 1,317mm (inside, industrial tyres) and an articulation angle of 44.2 degrees. Its oscillating centre pivot point keeps weight distributed evenly on uneven yard surfaces. This combination is what allows it to work in calf sheds, grain stores and narrow gateways where larger loaders cannot turn.

What comfort and visibility features are standard?

The TM110 has a fully glazed cab as standard, with a central driving position designed to give all-round visibility, unobstructed by the exhaust or air filter housing. Joystick loader controls, a tilting steering column and a front display showing fuel, temperature and hydraulic oil levels are all fitted as standard.

What safety and servicing features does it have?

The TM110 includes EN15000-rated load motion control, designed to keep lifting stable at full height. A belly guard protection plate, articulation joint safety strut and ROPS/FOPS cab structure are standard. A hydraulic quickhitch and in-cab attachment isolation are also fitted as standard, and fluid capacities are modest for the class: 44 litres of fuel, 48 litres of hydraulic oil and 9 litres of coolant.

TM110 Agri specification at a glance

Lift Capacity

1,100kg

Lift Height

3.5m

Operating Weight

3,295kg

Engine Power

36kW (48hp)

Engine Torque

167Nm at 2,200rpm

Transmission

2-speed hydrostatic

Travel Speed

20-30kph

Turning Radius

1,317mm

Articulation Angle

44.2 degrees

Breakout Force

24.6kN

Fuel Tank

44litres

Emissions Standard

Stage V (DPF, no AdBlue)

Who is the JCB TM110 Agri suited to?

The TM110 suits livestock and mixed farms where buildings and yards are tight but lifting demands are still significant: muck-out in low sheds, bale handling, feed dispensing, pallet and IBC handling in stores, and general yard work. It is aimed at farms that have found full-size telehandlers too large for their buildings but still need proper lift capacity and reach.

Frequently Asked Questions

Is the JCB TM110 a telehandler or a wheel loader?

It is classed as a telescopic wheel loader. It combines a wheel loader’s compact chassis and articulated steering with a telescopic boom, giving it more reach and lift height than a standard loader in a similar footprint.

Does the TM110 need AdBlue?

No. The TM110’s Stage V compliant engine uses a DPF particulate filter and does not require AdBlue (diesel exhaust fluid), which simplifies servicing compared with machines that need a DEF system.

What is the top speed of the JCB TM110?

The TM110 has a top travel speed of 30kph in high range, with a low range of 8kph or 12kph (depending on transmission spec) for precise work in confined spaces.

What attachments can the TM110 use?

The TM110 is fitted with a hydraulic quickhitch as standard, so it can run forks, buckets and other loader attachments such as bale spikes and IBC/pallet handling frames.
